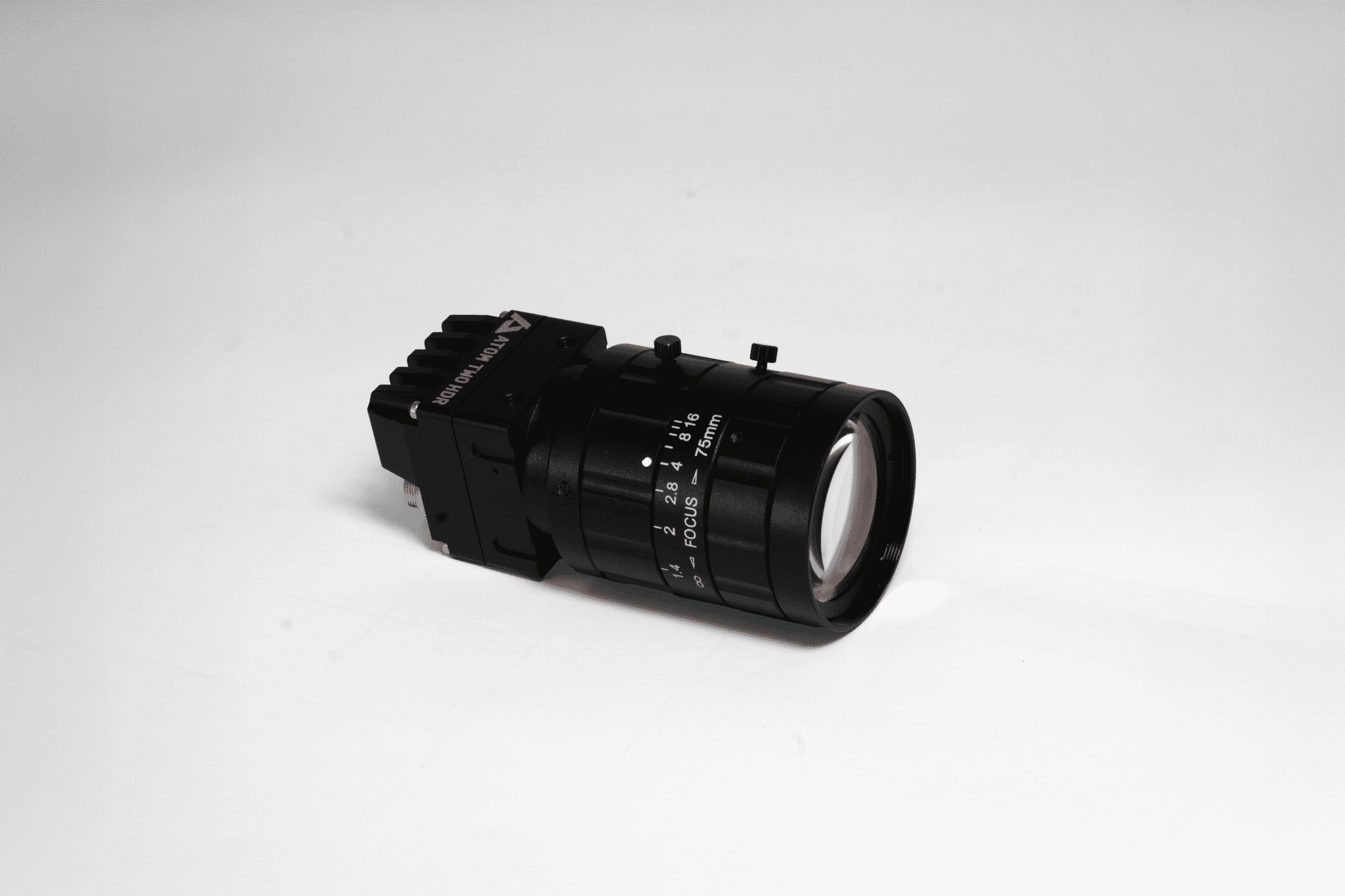

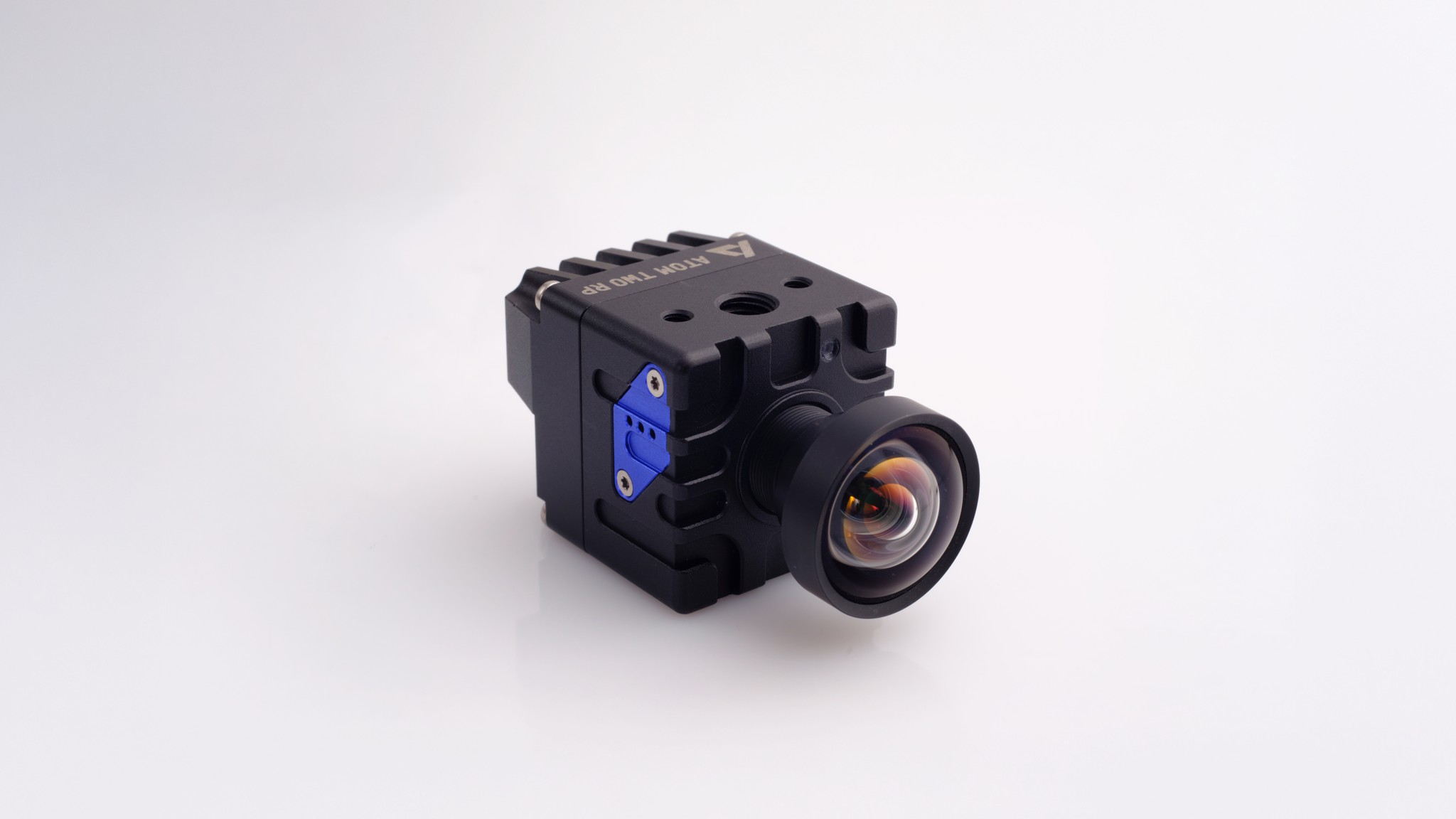

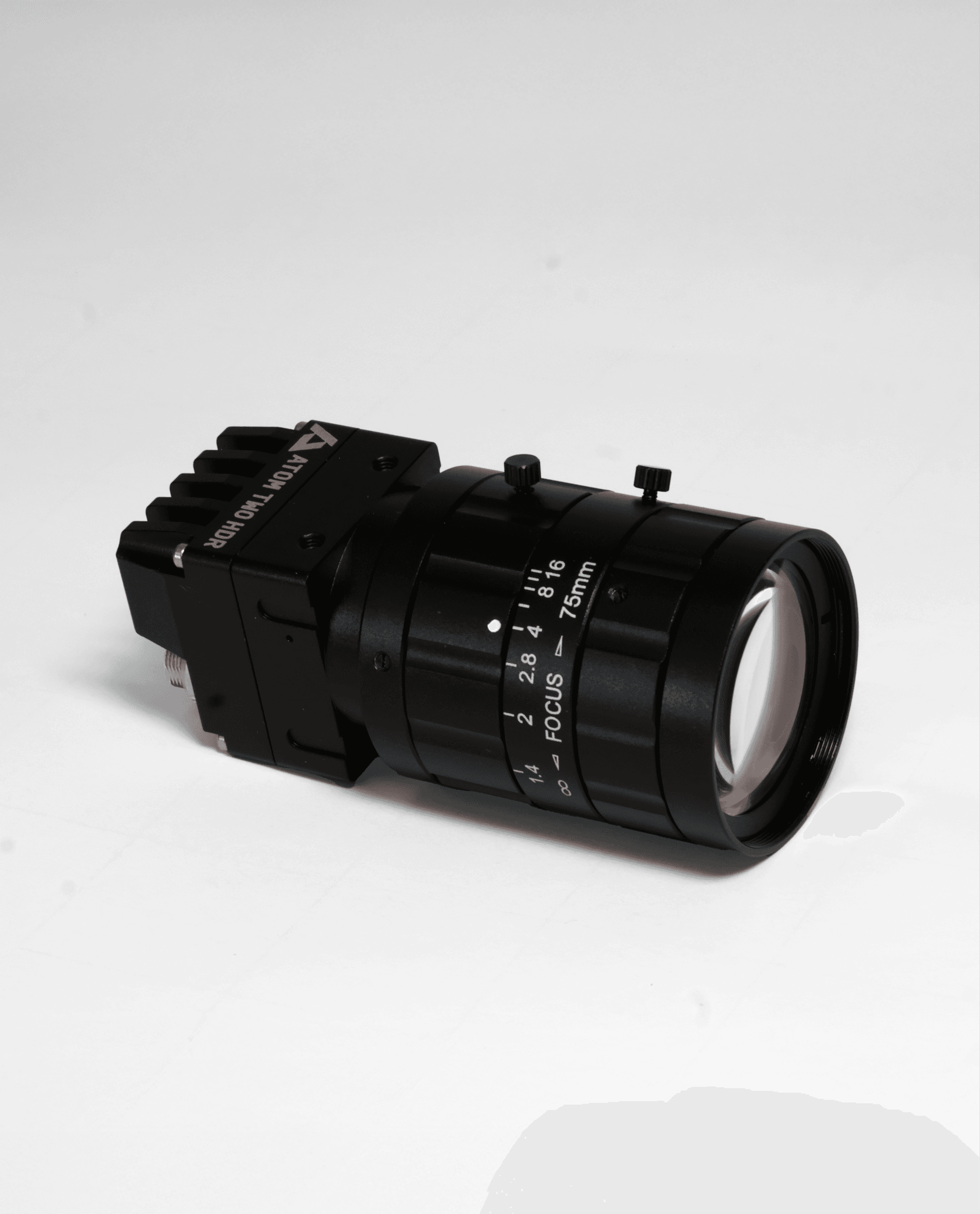

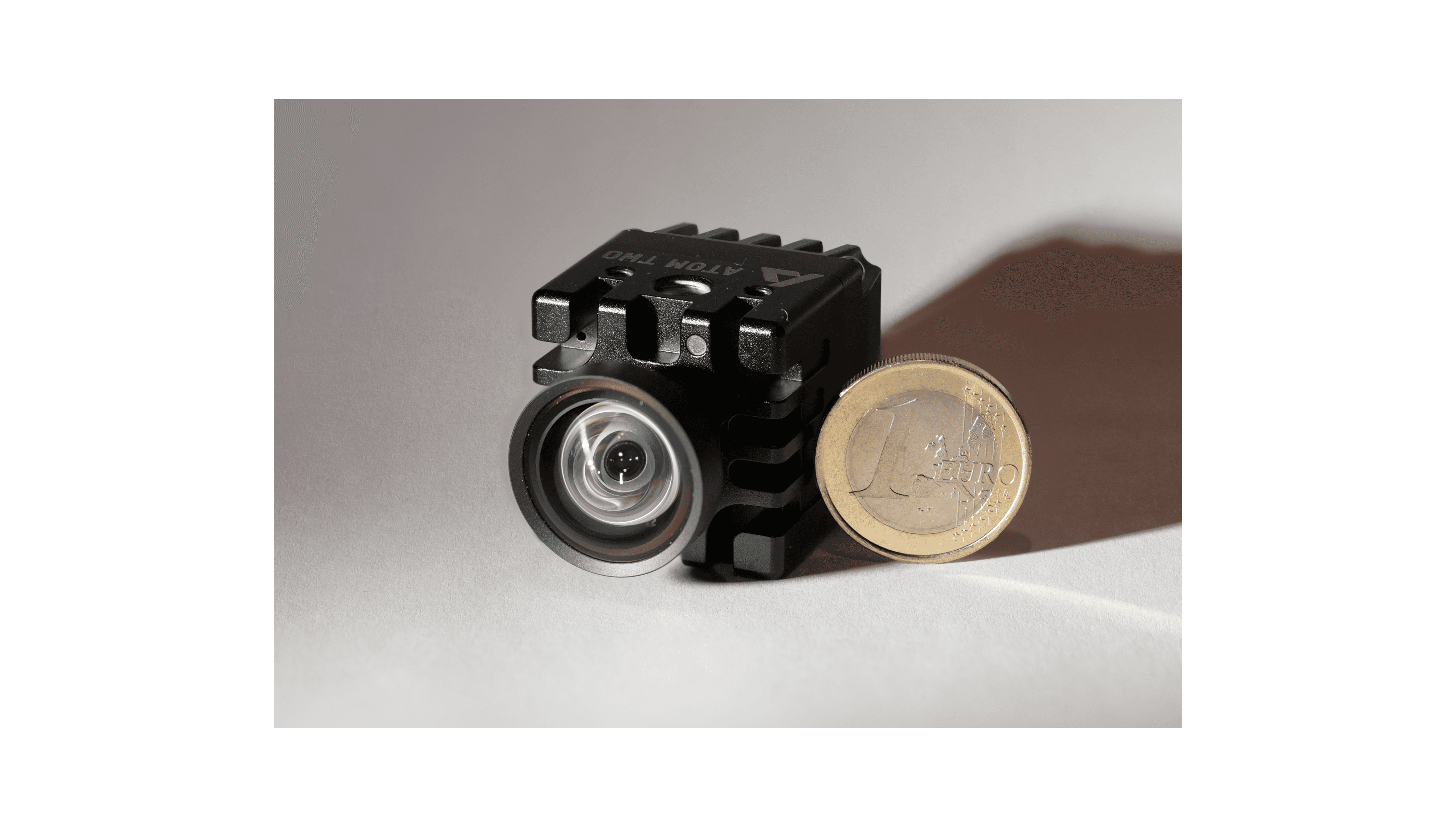

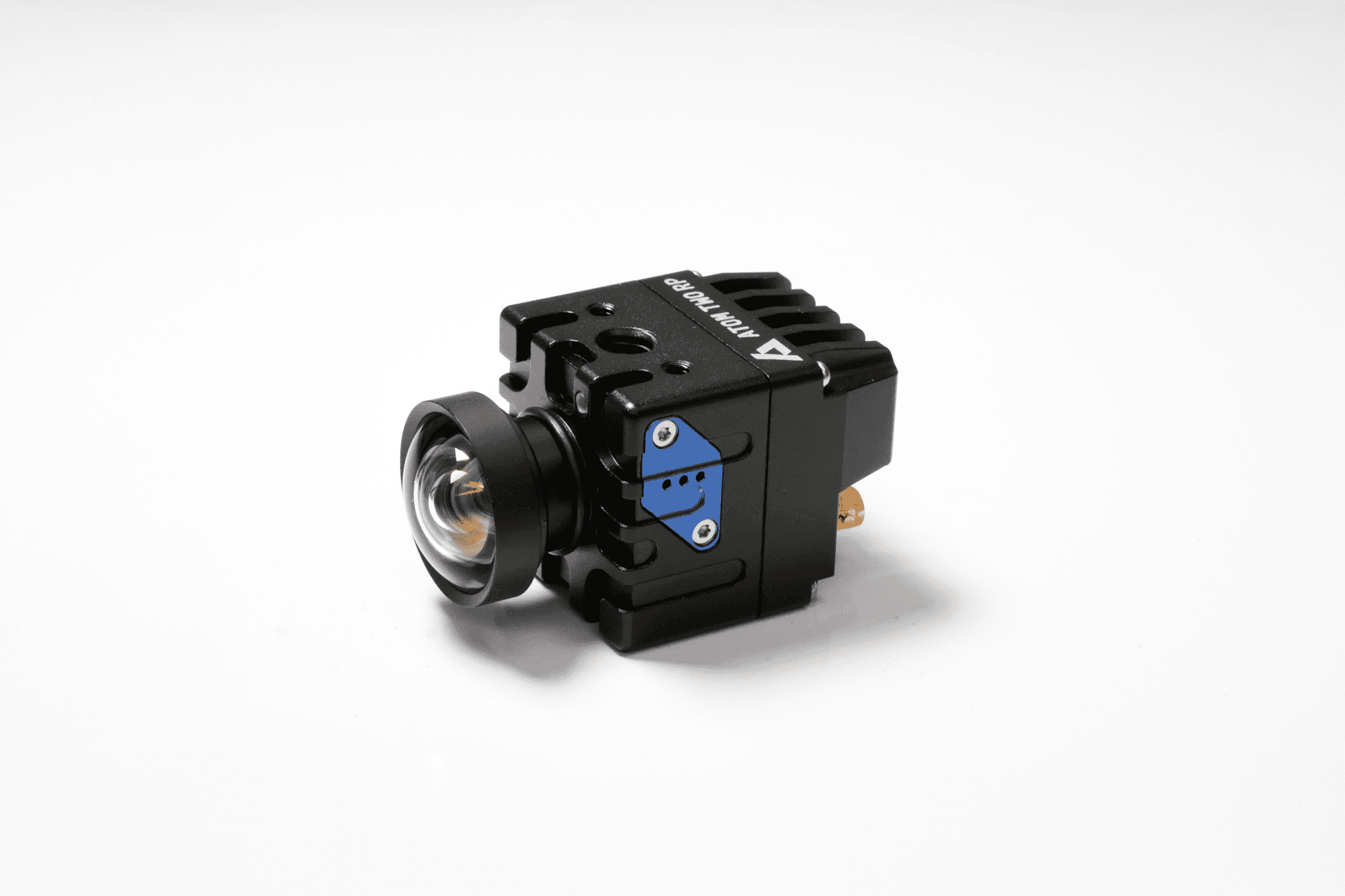

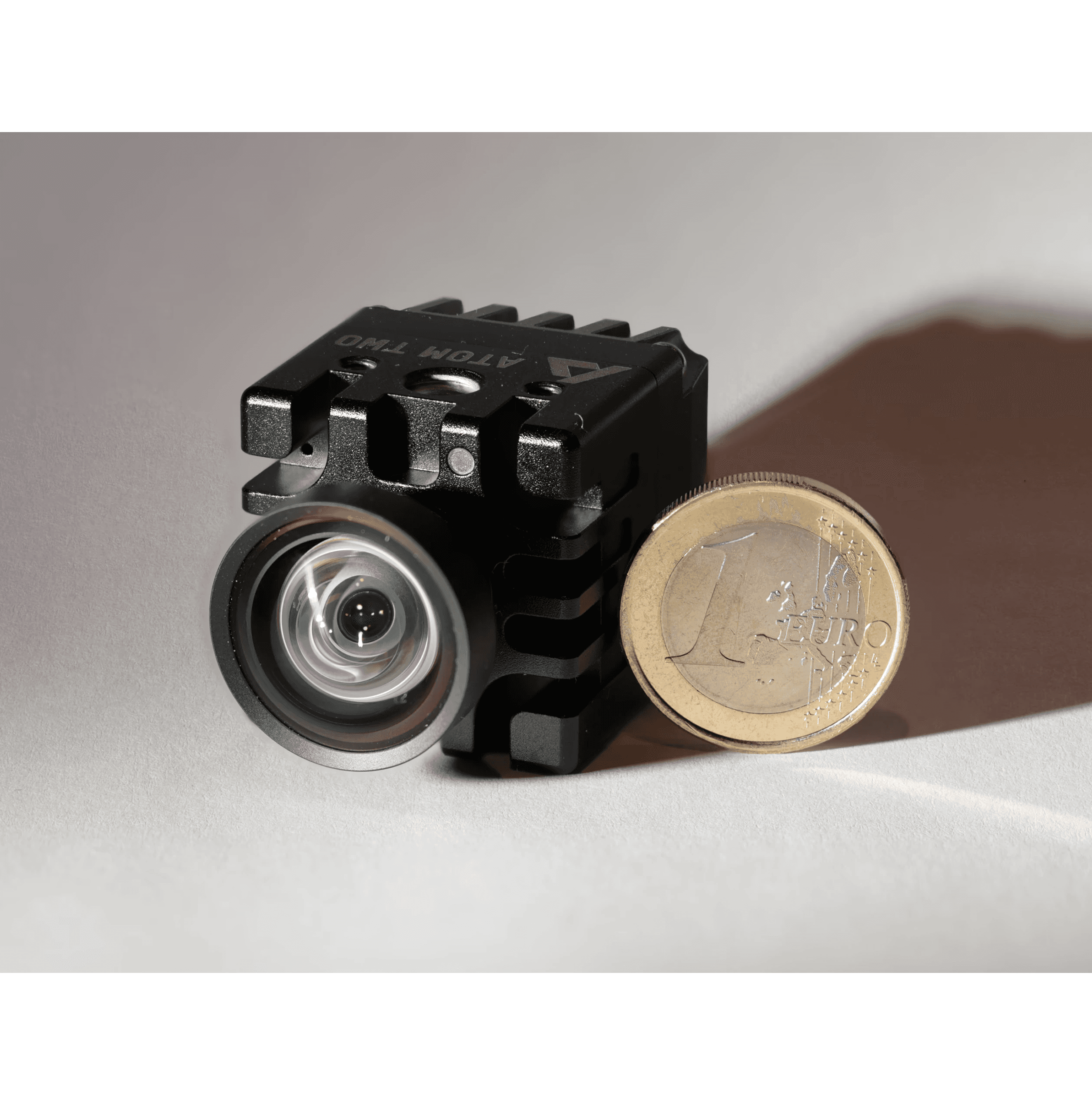

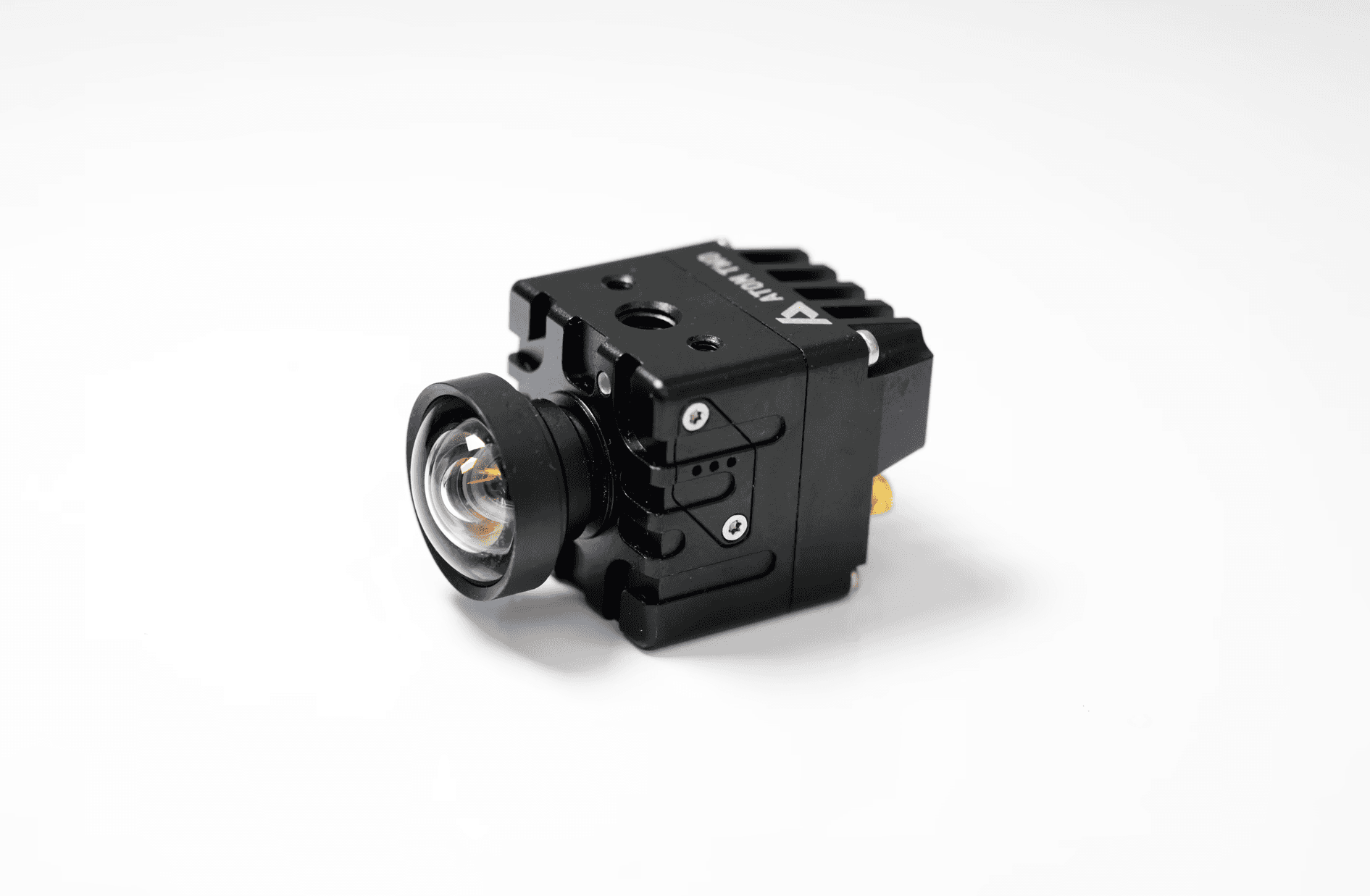

Atom Two

Atom Two

NEW! smallest Global Shutter broadcast camera

NEW! smallest Global Shutter broadcast camera

– Global Shutter

– Sensor size: 1/1,8”

– HDR: HLG, PG; SLOG 3

– Global Shutter

– Sensor size: 1/1,8”

– HDR: HLG, PG; SLOG 3

– 13 stops dynamic range

– FULL HD resolution

– One 3G-SDI output + power/RS485

– 13 stops dynamic range

– FULL HD resolution

– One 3G-SDI output + power/RS485

– Size: 29mm x 29mm x 33mm

– Wide angle : 90° @4,5mm lens

– Microphone (stereo)

– Size: 29mm x 29mm x 33mm

– Wide angle : 90° @4,5mm lens

– Microphone (stereo)

– multi matrix support

– Weight: 55 g

– multi matrix support

– Weight: 55 g

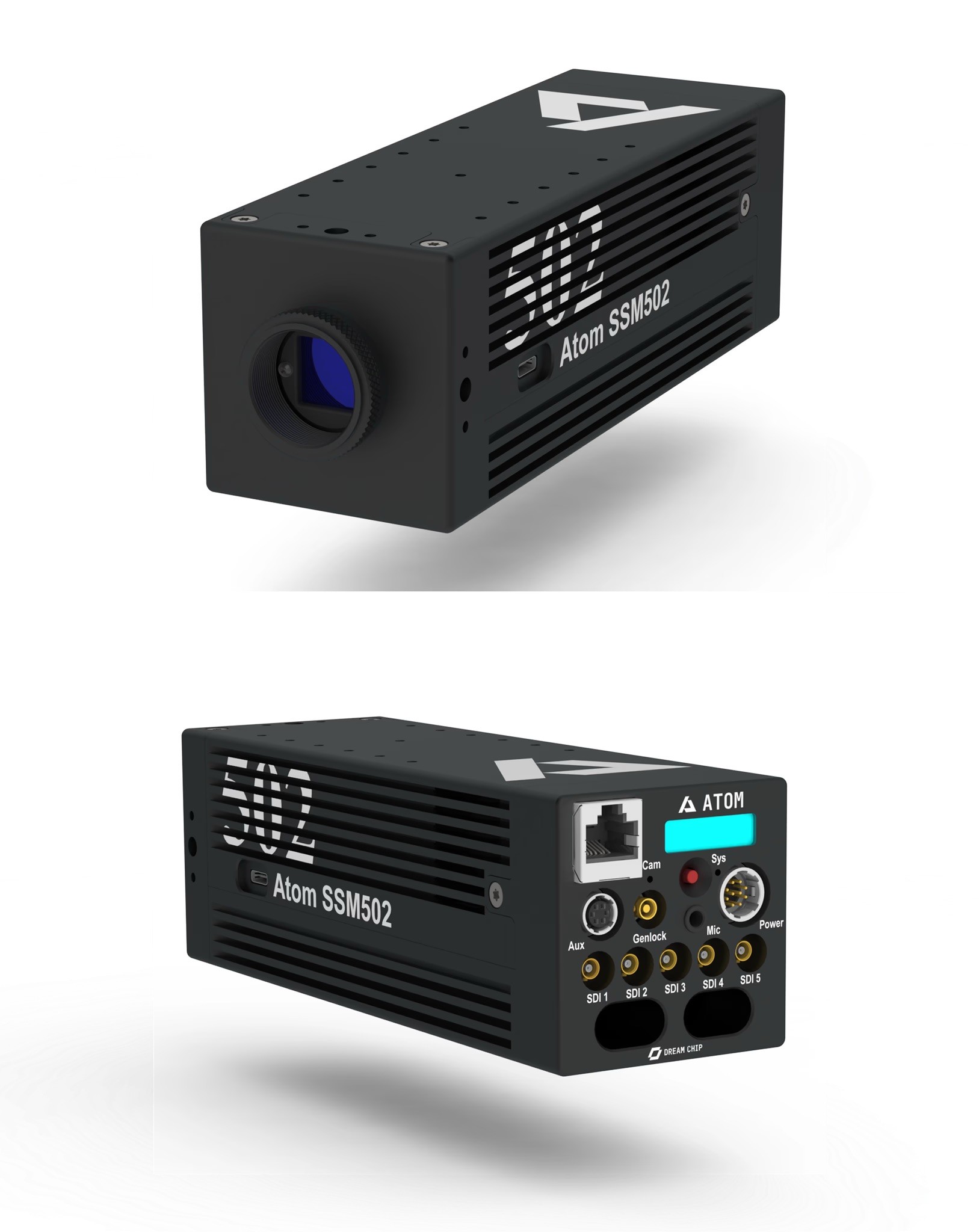

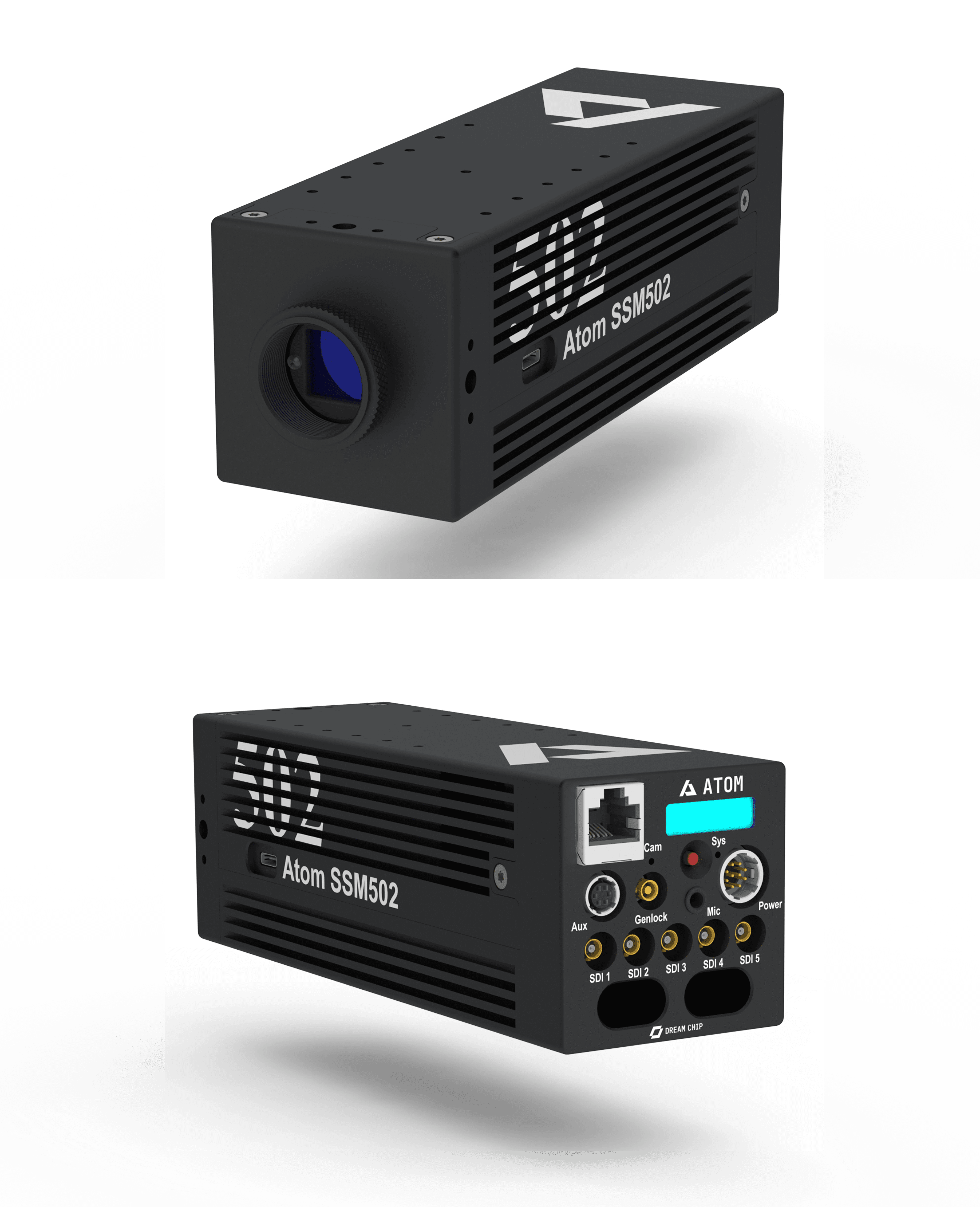

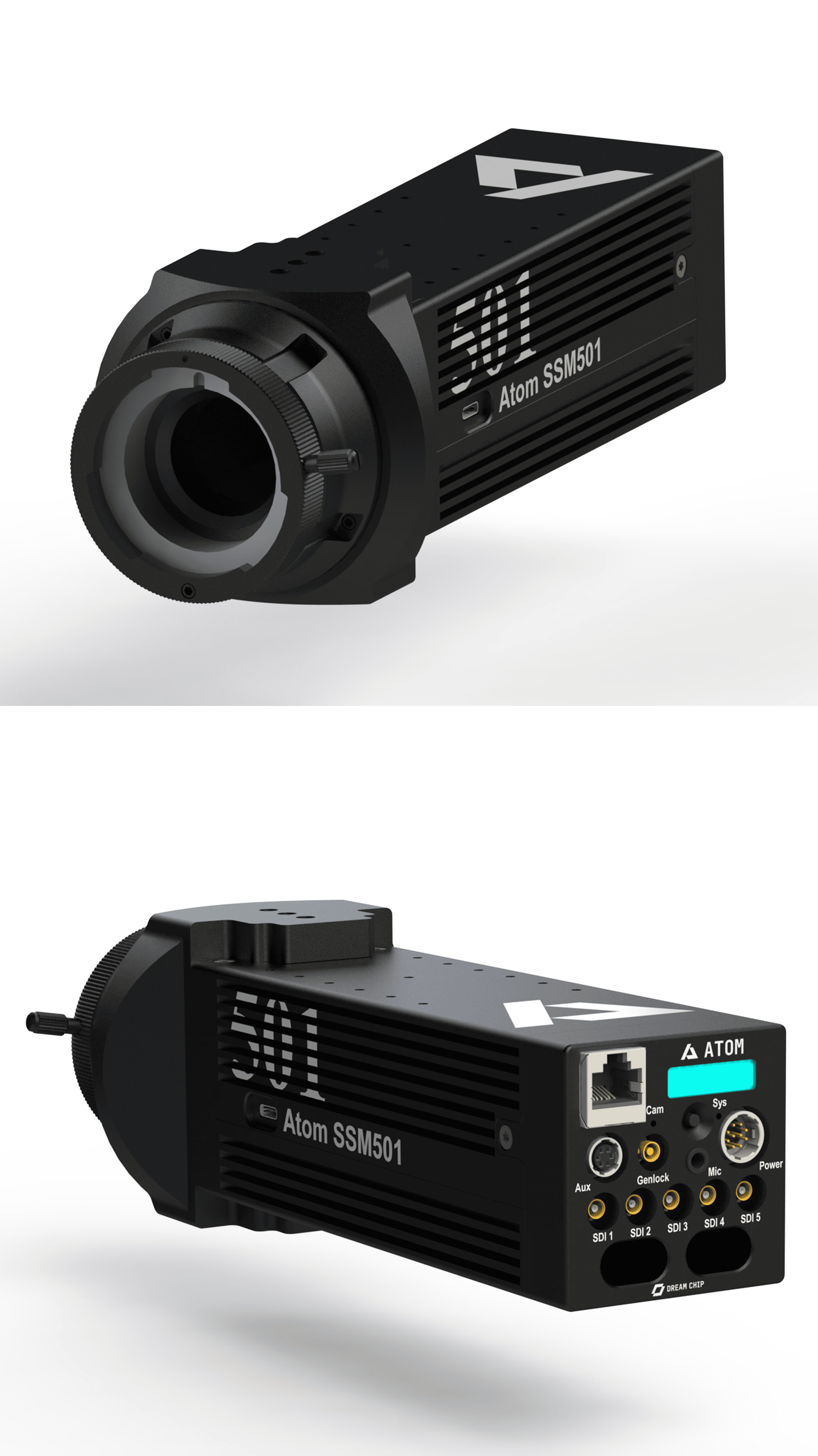

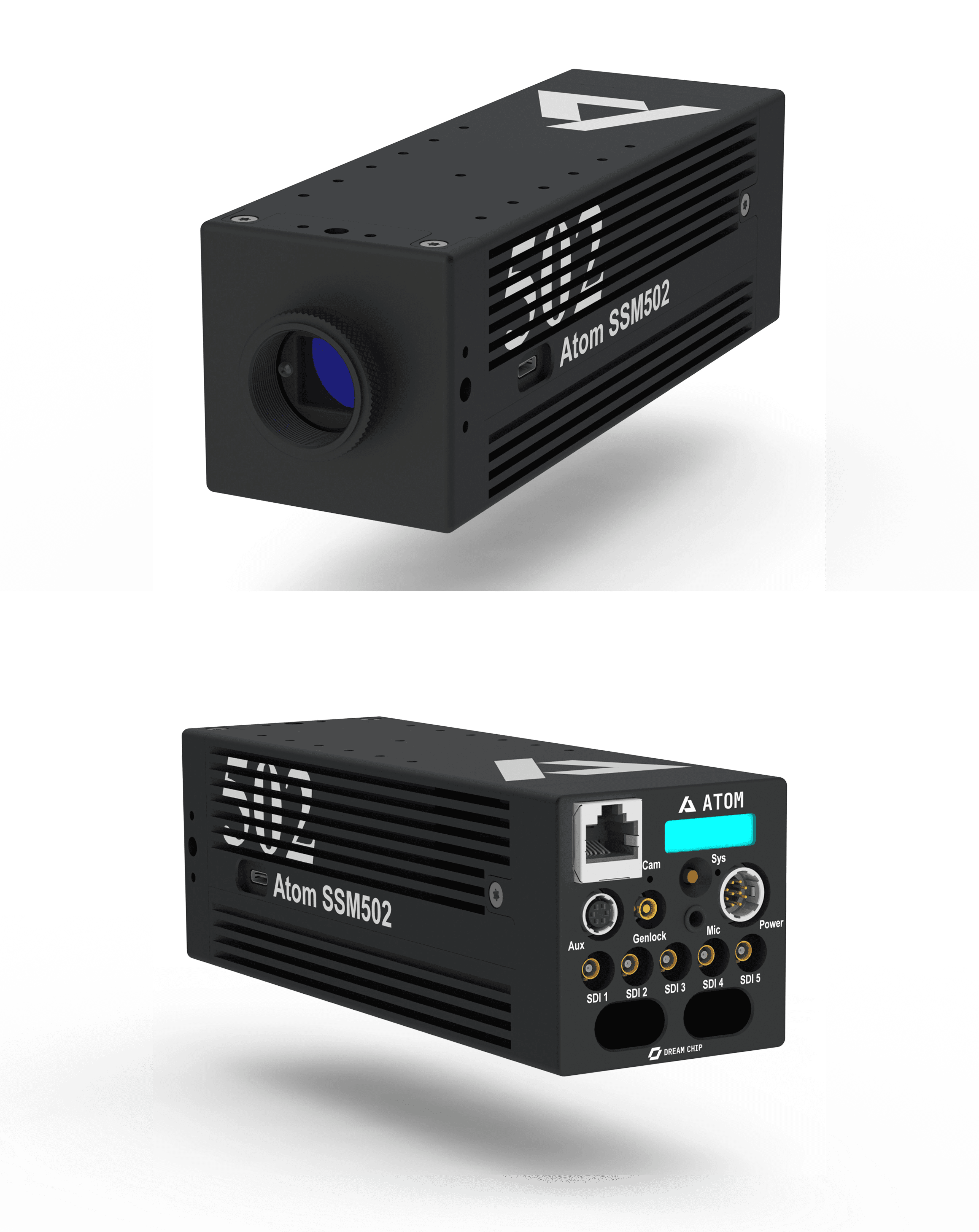

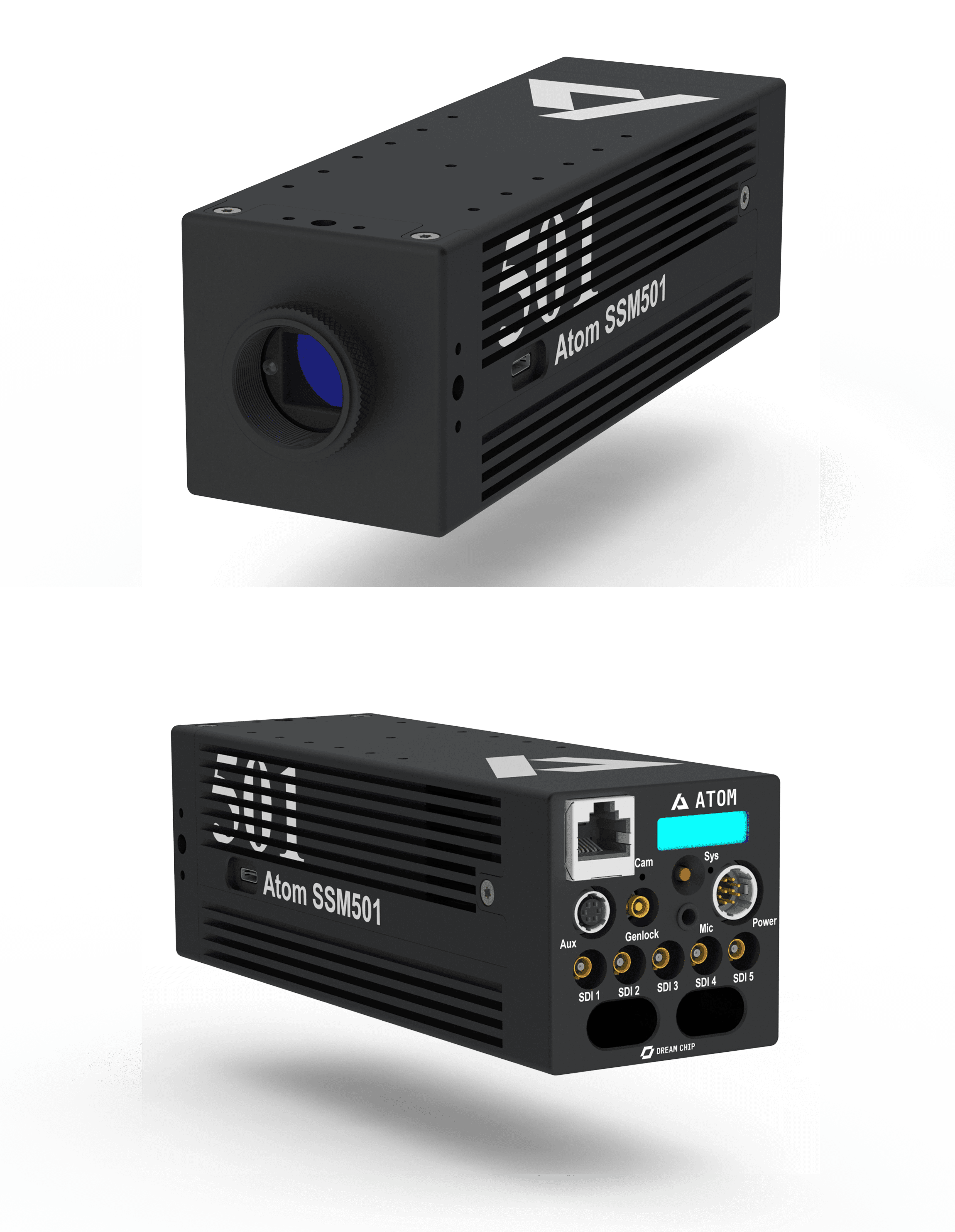

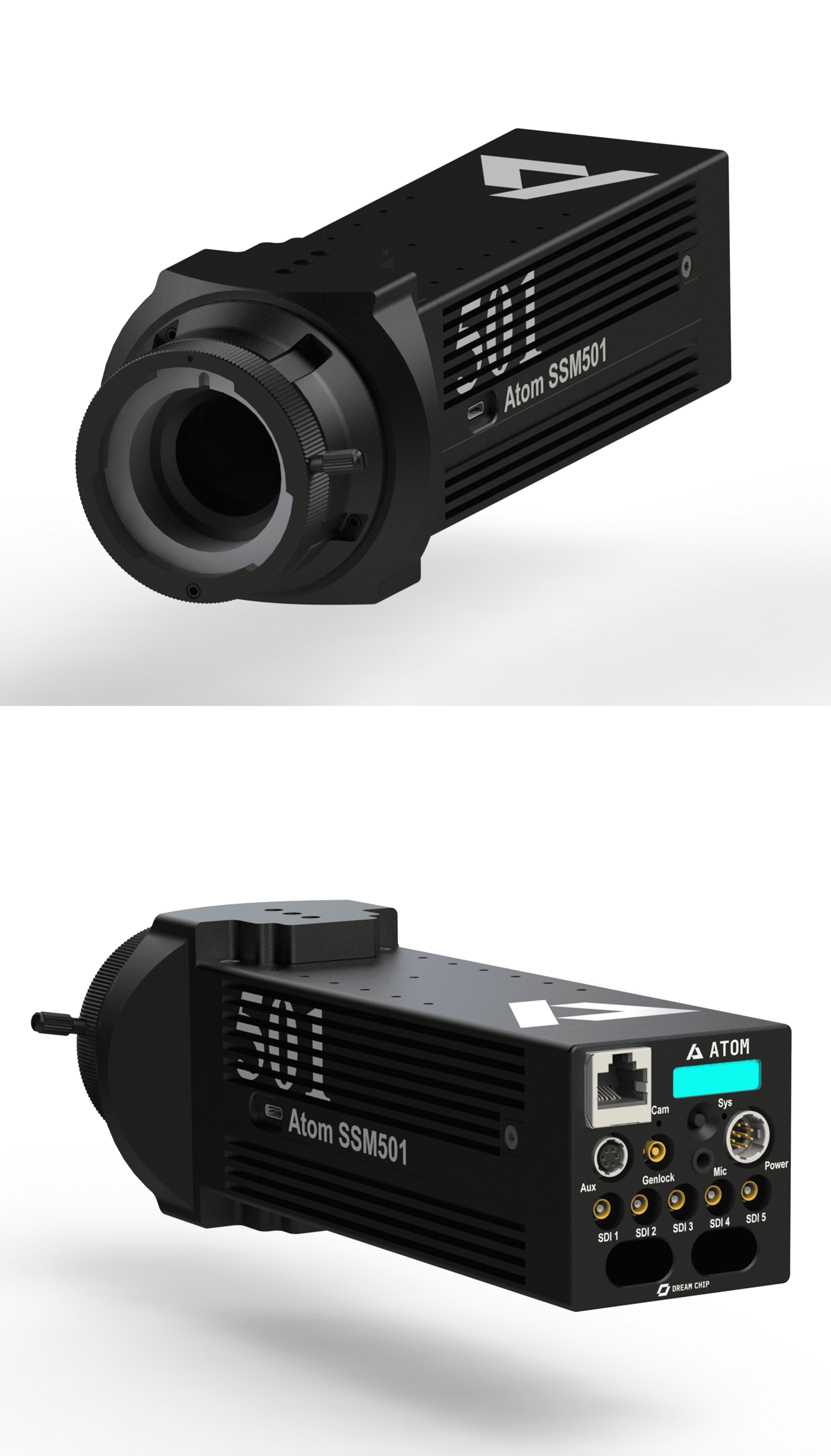

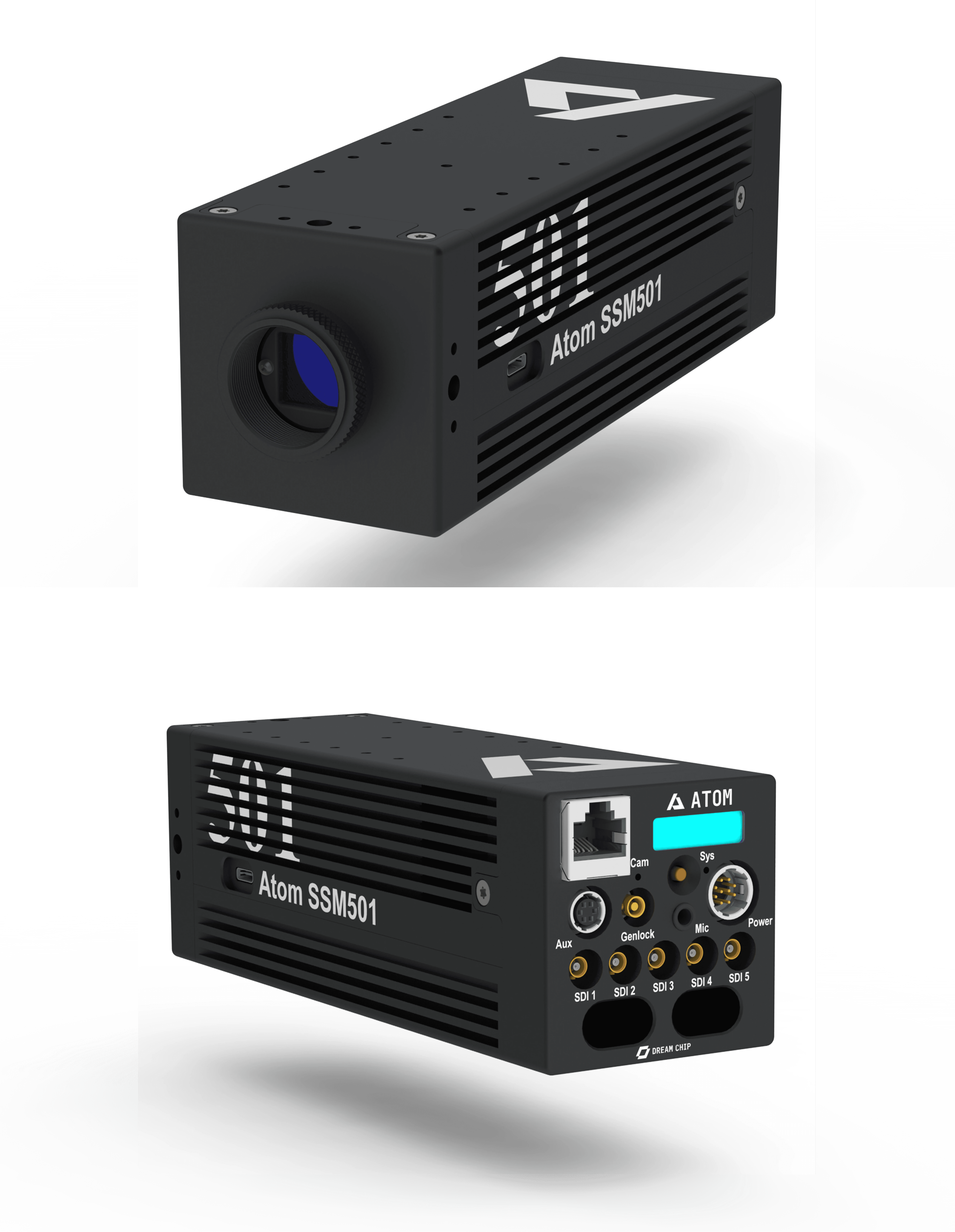

Atom One SSM500

Smallest high-speed broadcast camera

Smallest high-speed broadcast camera

– FULL HD resolution (1920x1080)
Global Shutter
– Frame rate: up to 500 fps

– FULL HD resolution (1920x1080)
Global Shutter
– Frame rate: up to 500 fps

Dynamic: 300 fps 12 bit - 500 fps 10bit
– Video output: SSM mode (4x60p) or Trigger mode
– Multi matrix support

Dynamic: 300 fps 12 bit - 500 fps 10bit
– Video output: SSM mode (4x60p) or Trigger mode
– Multi matrix support

– Recordingtime: @500fps 60 seconds
– RS 485 control
– Genlock
– HDR: HLG, PQ and SLOG3

– Recordingtime: @500fps 60 seconds
– RS 485 control
– Genlock
– HDR: HLG, PQ and SLOG3

– Size: 189mm x 60mm x 60mm
– Weight : 900 g
– Mount : C Mount and B4 Mount

– Size: 189mm x 60mm x 60mm
– Weight : 900 g
– Mount : C Mount and B4 Mount

Atom One mini

Smallest SDI broadcast camera

Smallest SDI broadcast camera

– FULL HD resolution

– HDR: HLG, PQ and SLOG3

– RS 485 control + power on hirose connector

– One 3G-SDI output

– Size : 30mmx30mmx31mm

– Weight : 45 g

– Rolling shutter

– Sensor size : 1/2.5”

– Mount : S-Mount

– Wide angle : 85° @3.4mm lens (included)

– Microphone (mono)

– multi matrix support

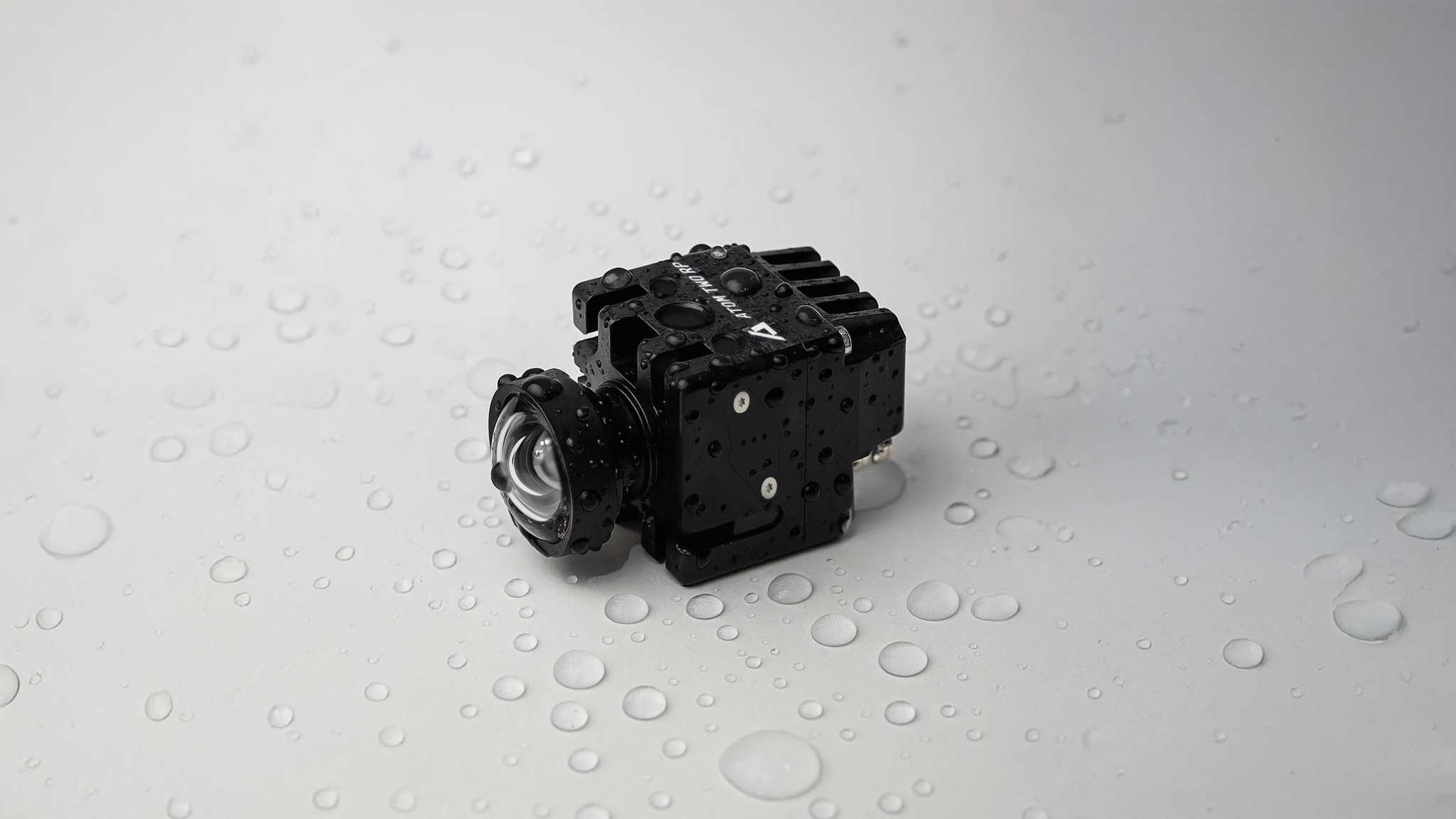

Atom One mini AIR

Smallest SDI broadcast waterproofed camera

Smallest SDI broadcast waterproofed camera

– FULL HD resolution
– HDR: HLG, PQ and SLOG3
– RS 485 control + power on breakout cable

– One 3G-SDI
– outputSize : 30mm x 30mm x 18mm
– Weight : 25 g

– Rolling shutterSensor

– size : 1/2.5”
– Mount : S-MountWide
– angle : 85° @3.4mm

– lens (included)
– Microphone (mono)
– multi matrix support

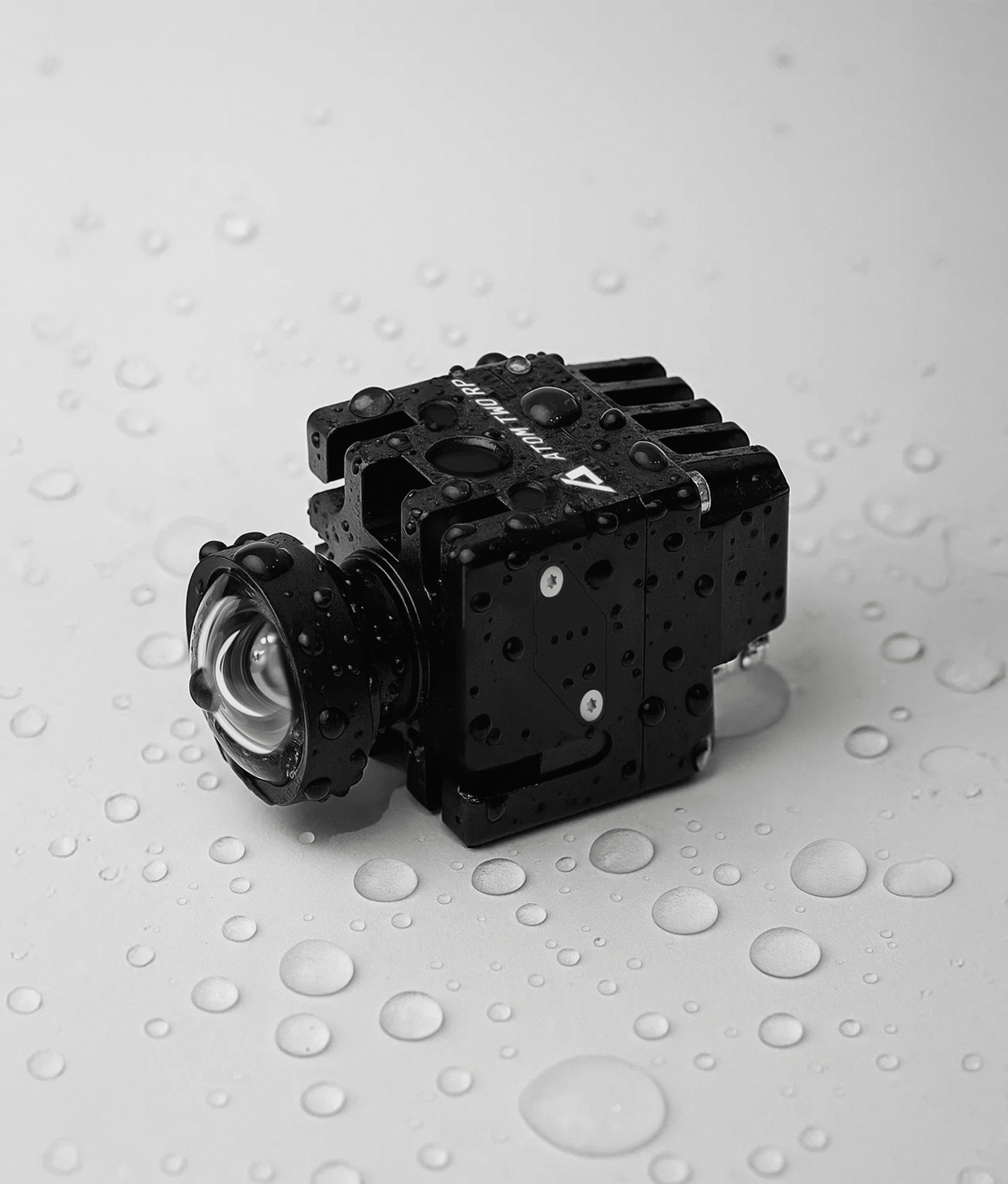

Atom One mini Waterproof

Smallest SDI broadcast waterproofed camera

Smallest SDI broadcast waterproofed camera

– FULL HD resolution

– HDR: HLG, PQ and SLOG3

– RS 485 control + power on breakout cable

– One 3G-SDI output

– Size : 32mm x 32mm x 51mm

– Weight : 115 g

– Rolling shutter

– Sensor size : 1/2.5”

– Mount : S-Mount

– Wide angle : 85° @3.4mm lens (included)

Atom One

Smallest UHD camera / Ultra wide angle

Smallest UHD camera / Ultra wide angle

– FULL HD resolution

– Global shutter

– Sensor size : 1/1.23”

– HDR: HLG, PQ and SLOG3

– RS 485 control + power on hirose connector

– Two 3G-SDI output

– Genlock

– Size : 32mm x 32mm x 72mm

– Weight : 100 g

– Mount : C Mount

– Wide angle : 90° @5mm lens

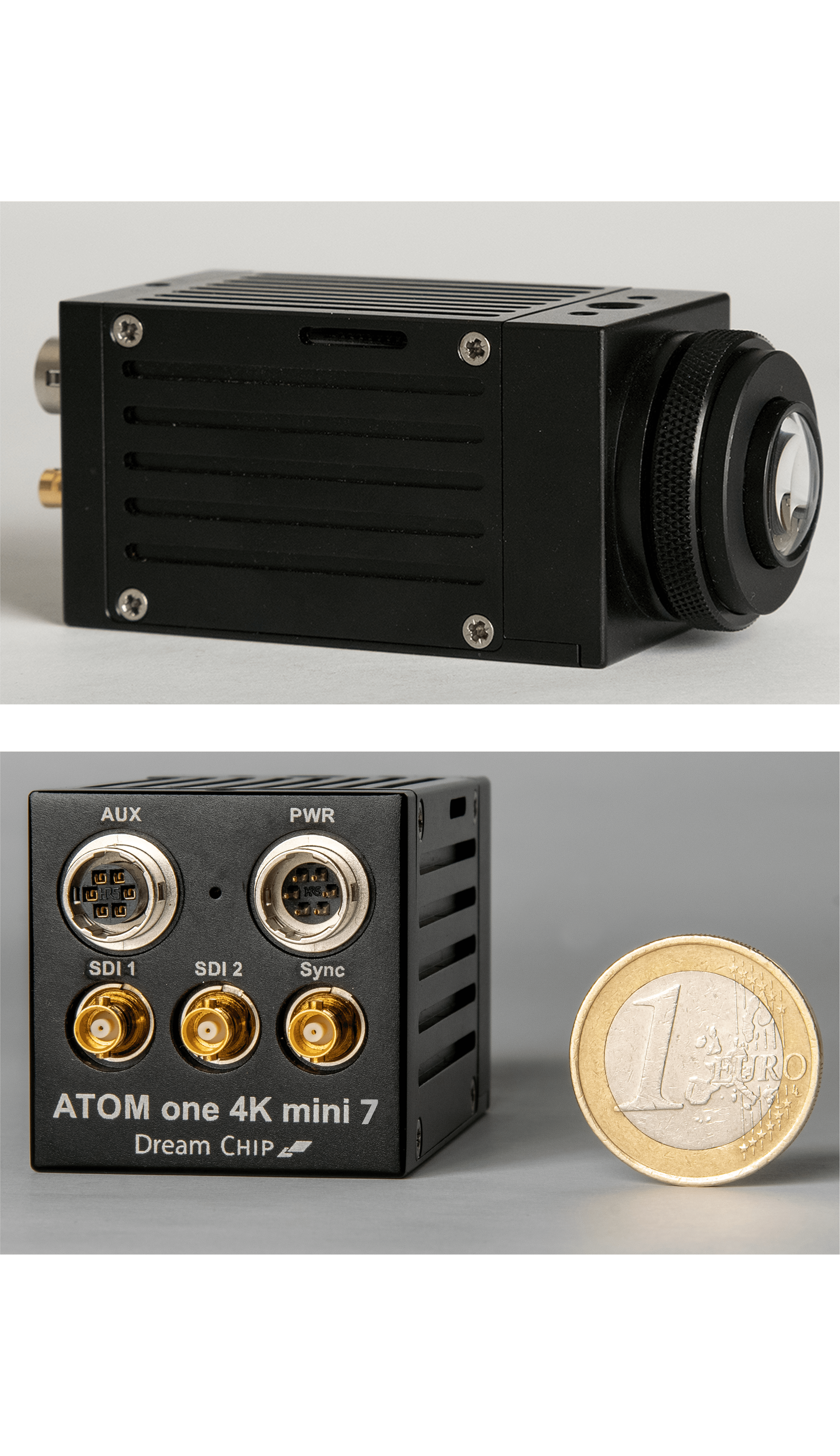

Atom One 4K mini 7

Smallest UHD 1" Global shutter / (4K HDR) camera

Smallest UHD 1" Global shutter / (4K HDR) camera

– 4K resolution

– RS 485 control + power on hirose conector

– Two 4K-SDI output (one can be downscaled to 3G)

– Genlock

– Size : 36mm x 36mm x 74mm

– Weight : 122 g

– Rolling shutter

– Sensor size : 1/2.5”

– Mount : S-Mount or C-Mount (not included)

– Wide angle : 85° @3.4mm lens (included)

– Microphone (stereo)

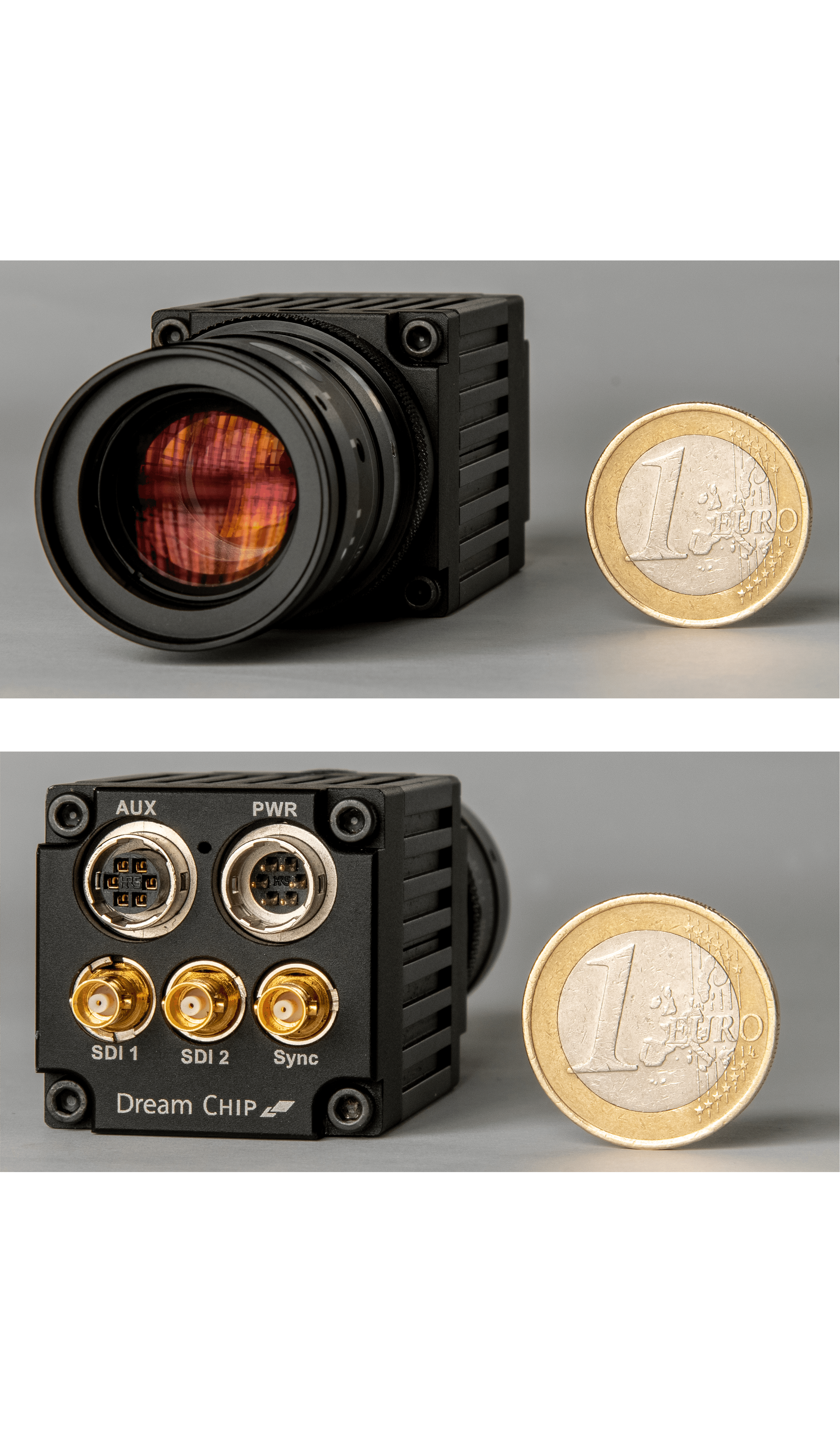

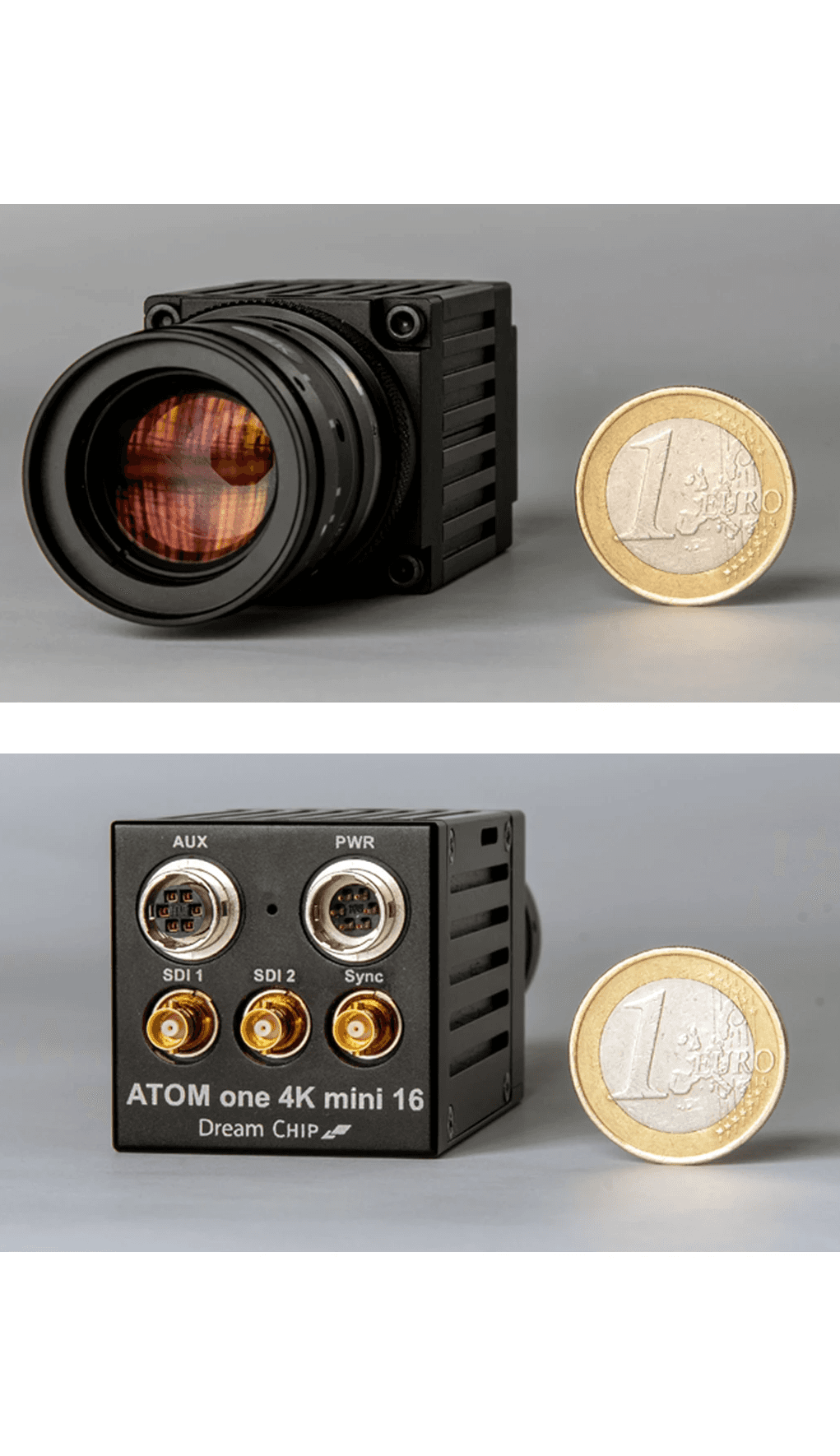

Atom One 4K mini 16

Smallest UHD camera / Ultra wide angle

Smallest UHD camera / Ultra wide angle

– 4K resolution

– Global shutter

– Sensor size : 1”

– RS 485 control + power on hirose connector

– Two 4K-SDI output (one can be downscaled to 3G)

– Genlock

– Size : 36mm x 36mm x 74mm

– Weight : 123 g

– Mount : C-Mount

– Wide angle : 112° @4,7mm lens (not included)

– Microphone (stereo)
